Paint Line Equipment: A Buyer's Engineering Guide

Elena Varga, a procurement manager at a Romanian elevator panel manufacturer, received three quotations for a new wet paint system in March 2024. One supplier quoted a water curtain spray booth. Another proposed a dry filter booth. The third included an Ω-disk atomizer she had never specified before.

Each quotation used different terminology, different capacities, and different control architectures. She needed one thing above all: a clear way to evaluate paint line equipment as an integrated system, not a list of disconnected machines.

Selecting the right paint line equipment means matching each machine to your workpiece geometry, paint chemistry, daily volume, and quality standard. The wrong booth creates contamination. The wrong applicator wastes material. The wrong dryer causes defects that no amount of skilled labor can fix.

In this guide, you will learn what paint line equipment includes, how each component affects finish quality, and how to specify a configuration that works as a single production system.

Want a layout designed around your parts? Request a Free Line Design Drawing and our engineering team will prepare a preliminary configuration based on your workpiece dimensions, output targets, and finish requirements.

What Is Paint Line Equipment?

Paint line equipment is the integrated system of machines that apply, dry, and move liquid coatings through a manufacturing process. A complete system includes surface preparation, spray application, flash-off, drying, material handling, and process control stages connected by a conveying system.

Paint line equipment ranges from individual spray booths for batch operations to complete automatic painting lines and liquid painting lines that run thousands of parts per day with minimal operator intervention.

Organizations such as the American Coatings Association track advances in paint line equipment, including waterborne coating systems, low-VOC application methods, and energy-efficient drying technologies that influence modern liquid finishing design. Industry standards from ASTM International define coating adhesion, film thickness, and cure testing methods that engineers use to validate paint line equipment performance.

A complete set of paint line equipment typically handles six process functions:

Surface preparation is often underestimated; our surface pretreatment guide explains how cleaning chemistry and process time affect adhesion and corrosion resistance.

No single piece of paint line equipment determines final quality on its own. The booth, applicator, dryer, conveyor, and control system must be sized together around the same painting production line requirements.

Spray Booths: The Foundation of Paint Line Equipment

The spray booth defines the coating environment. It protects the workpiece from dust, captures overspray, and manages airflow so operators or automatic applicators can apply paint consistently. A wet paint spray booth creates the controlled environment needed for liquid coating application. Booth selection is usually the first major decision when specifying spray painting equipment or a complete spray painting line.

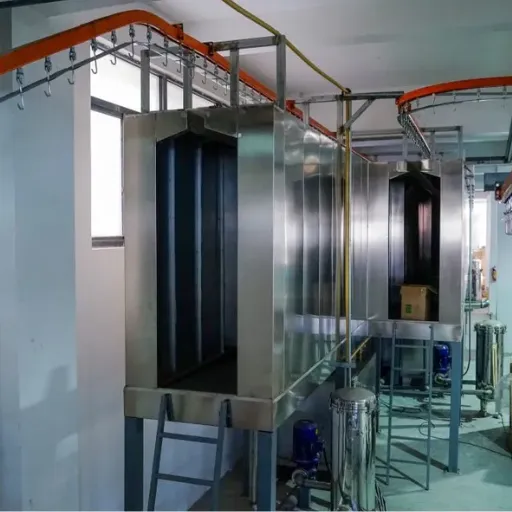

Water Curtain Spray Booth

A water curtain spray booth uses a continuous wall of recirculated water to capture overspray particles. The water scrubs paint aerosols from the air before exhaust. For high-volume wet finishing, a water curtain wet paint spray booth is often the first machine specified in a new spray painting line.

Deqing Leixin liquid painting lines often integrate water curtain spray booths for home appliance coating solutions, hardware, and automotive parts where finish cleanliness matters. The captured overspray settles into a sludge system that must be maintained and disposed of according to local regulations.

Not sure which booth technology fits your operation? Our water curtain vs dry spray booth comparison breaks down capture efficiency, maintenance requirements, and operating costs side by side. The PCI technical resources also provide guidance on spray booth design and overspray management for industrial wet paint systems.

Dry Spray Booth

A dry spray booth relies on filter media to capture overspray. These booths are simpler to install and maintain for low-volume or specialty coating operations. Filter replacement becomes a recurring operating cost, and airflow must be monitored as filters load with paint.

Water Whirl (Vortex) Spray Booth

A water whirl spray booth uses a rotating vortex of water to capture paint particles efficiently. These systems offer compact footprints and good capture rates for medium-volume operations. They also tend to produce less water volume than full water curtain systems.

When a Serbian hardware producer switched from open manual spraying to a Deqing Leixin water curtain spray booth, airborne contamination in the finish dropped by 80% within the first month. The rework caused by dust and lint essentially disappeared.

Automatic Applicators: Precision at the Heart of Spray Painting Equipment

Applicator technology is where transfer efficiency, film uniformity, and labor reduction are won or lost. The right applicator is one of the most important decisions when specifying spray painting equipment or a complete paint line equipment system.

Servo Reciprocators

A servo reciprocating machine is a type of automatic spray painting machine that moves spray guns in programmed vertical or horizontal strokes. It is cost-effective for flat or moderately curved panels such as appliance fronts, elevator doors, and cabinet enclosures.

Deqing Leixin servo reciprocating machines support spraying heights up to 2,500 mm with programmable stroke patterns and gun triggering intervals. Multiple guns can be mounted per side for wide coverage or faster line speeds.

Robotic Applicators

Robotic applicators use multi-axis industrial robots to coat complex geometries, interior cavities, and mixed-model production. They offer maximum flexibility but require higher capital investment, more programming time, and trained technicians to maintain trajectories.

Ω-Disk Painting Equipment

An Ω-disk painting system uses a rotating bell atomizer to generate a fine, controlled spray pattern with high transfer efficiency. This technology is ideal for small to medium workpieces where material savings and film uniformity justify the equipment cost. Deqing Leixin Ω-disk painting equipment is commonly used for hardware, tools, and fittings. Ω-disk systems are also widely deployed in automotive parts coating solutions for interior and exterior small-component finishing.

When a Turkish automotive supplier installed robotic applicators on plastic bumper covers, transfer efficiency improved from 35% to 62%. Material consumption dropped by 27%, and the number of touch-up operators fell from four to one.

Drying and Curing Equipment: Setting the Finish in Paint Line Equipment

After application, wet paint must be dried or cured before handling. Drying and curing equipment in a paint line equipment system provides controlled temperature profiles that evaporate solvents and set the film without defects like runs, sags, or solvent popping.

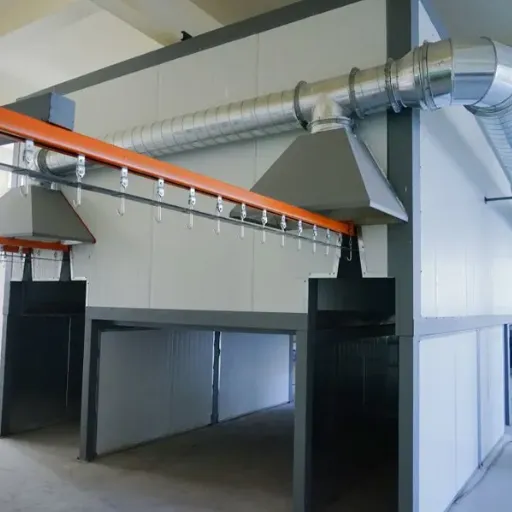

Tunnel Drying Ovens

Tunnel-type drying ovens are common in high-volume automatic painting lines and spray painting lines. They are divided into zones that gradually raise part temperature, reducing thermal shock and improving film quality. Deqing Leixin curing ovens and drying tunnels are available with electric, gas, oil, and steam heating to match local energy costs. See our gas vs electric curing oven comparison for a detailed breakdown of energy costs and performance trade-offs.

Batch Drying Ovens

Batch ovens suit lower volumes, larger parts, or operations with frequent color changes. Workpieces are sprayed in a booth and then transferred to a batch oven for curing. This configuration sacrifices continuous throughput for flexibility.

Infrared Curing Systems

Infrared curing systems use radiant energy rather than hot air to accelerate cure. They are useful for heat-sensitive substrates, spot heating, or areas where floor space is limited. They can also be integrated into a tunnel oven as a pre-gel zone.

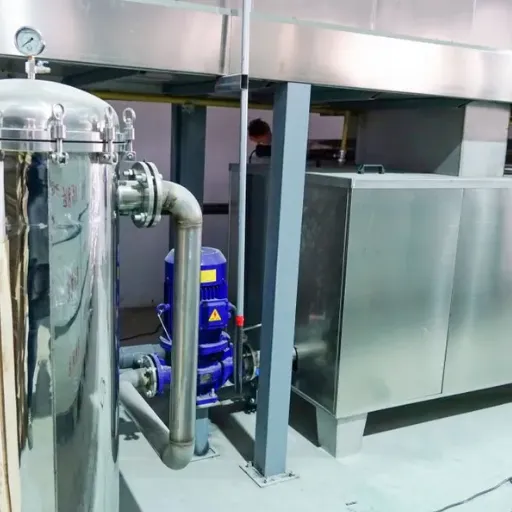

Paint Supply and Mixing Systems: The Overlooked Paint Line Equipment

Consistent color and viscosity depend on a well-designed paint supply system. This equipment is often underspecified, yet it directly affects transfer efficiency, color change time, and defect rates.

A complete paint supply system includes:

• Pressure-regulated supply tanks that maintain constant paint delivery to applicators.

• Circulation loops that keep paint moving to prevent settling and skin formation.

• Viscosity control units that add solvent or adjust temperature to maintain sprayability.

• Color-change manifolds that reduce flushing time between shades.

For high-mix operations, rapid color change capability is critical. A well-designed paint kitchen can reduce changeover time from 30 minutes to under 5 minutes, directly improving line utilization.

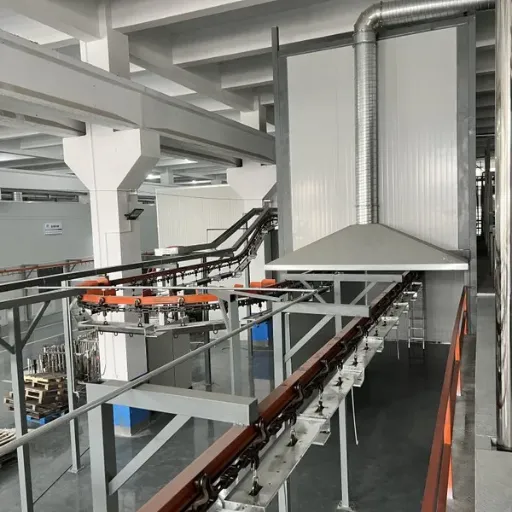

Conveying Systems: Moving Workpieces Through Paint Line Equipment

Workpieces move through paint line equipment on an integrated conveying system. The conveyor type must match workpiece size, weight, and the required process flow.

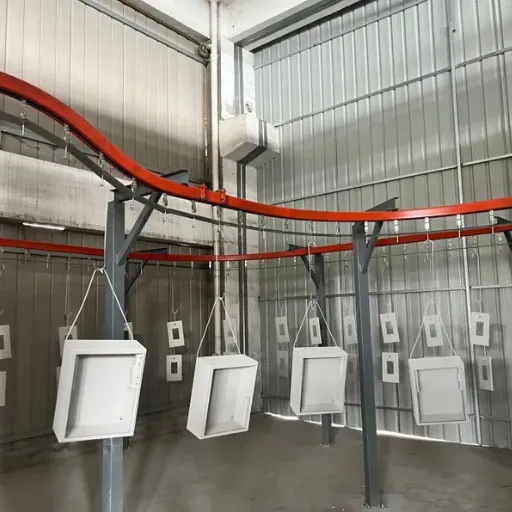

Overhead Suspension Conveyors

Overhead suspension chains are common for medium to large parts. They keep parts elevated, reduce floor space requirements, and allow dipping and draining in pretreatment stages.

Power-and-Free Conveyors

Power-and-free systems allow parts to accumulate at stations or be routed to different process paths. They are useful when parts require variable dwell times or when multiple colors share the same line.

Skid-Based Floor Conveyors

Skid conveyors support very large or heavy workpieces that cannot be hung economically. They are common in automotive body coating and large appliance assembly.

Deqing Leixin aerial and ground conveying systems are designed around workpiece dimensions, factory layout, and the required line speed for each process stage.

Controls and Automation: The Nerve Center of Paint Line Equipment

The PLC touch-screen control system ties paint line equipment into a single coordinated process. It stores recipes, synchronizes conveyor speed with applicator motion, monitors oven temperature, and logs production data. Without robust controls, even the best paint line equipment components cannot deliver consistent quality.

A well-designed control system allows operators to switch between product models by selecting the appropriate recipe. This reduces setup time, minimizes human error, and supports traceability for quality management systems.

Modern controls can also integrate variable-frequency drives on fans, energy recovery systems, and remote monitoring displays. These features reduce operating cost and provide production visibility from a central location.

How to Choose Paint Line Equipment for Your Operation

Specifying paint line equipment starts with production requirements, not product catalogs. Engineers need accurate inputs before recommending components. For a step-by-step framework, see our coating line design guide.

Workpiece Dimensions and Weight

Maximum length, width, height, and weight determine booth size, conveyor capacity, and oven chamber dimensions. Home appliance coating solutions typically involve lightweight sheet metal panels that require different conveyor and oven specifications than heavy castings. Large panels such as elevator doors and electrical enclosures require specialized handling; see our elevator and electric cabinet coating solutions.

Required Film Thickness and Finish Quality

The target film thickness, gloss level, and color tolerance dictate applicator type, gun count, and drying profile. High-gloss finishes show defects more readily and demand cleaner booth environments and finer atomization.

Daily Output and Line Speed

Required parts per hour determines conveyor speed, booth length, and oven dwell time. A line running 60 parts per hour requires different drying capacity than one running 10 parts per hour.

Paint Chemistry and Substrate Material

Waterborne, solventborne, and UV-curable coatings behave differently during application and drying. Substrate material affects surface pretreatment chemistry, flash-off time, and maximum curing temperature.

When an Indian appliance manufacturer defined these inputs before requesting quotations, they avoided buying a booth sized for metal furniture when their panels were actually large refrigerator doors. The revised specification cut both capital cost and energy consumption by 18%.

Paint Line Equipment Cost Factors

The capital cost of paint line equipment can range from $60,000 for a compact batch spray system to over $1,000,000 for a high-volume inline robotic painting production line. Total cost depends on several factors.

Material Savings Through Better Application

Automation improves transfer efficiency. An automatic spray painting machine such as a servo reciprocator or Ω-disk system at 60-70% transfer efficiency can cut paint consumption by 30-50% compared with manual spraying at 30-40%.

Labor and Footprint

A fully automatic painting line may require one operator to monitor controls where manual painting required three to five spray operators. However, automated equipment requires more floor space and electrical infrastructure than a manual batch system. Read our full automatic vs manual coating cost and quality analysis for ROI calculations and labor reduction benchmarks.

Energy and Maintenance

Drying ovens and circulation pumps are the main energy consumers. Insulated tunnel ovens, heat recovery, and variable-frequency drives on fans reduce operating cost. Scheduled maintenance on applicators, filters, and conveyor chains prevents unplanned downtime.

Integration: Why Paint Line Equipment Must Work as a System

Individual machines can be well-engineered and still produce poor results if they are not integrated. The booth must be sized for the applicator spray pattern. The dryer must be sized for the conveyor speed. The conveyor must be synchronized with the applicator cycle time.

This is why turnkey project delivery matters. Deqing Leixin engineers each painting production line as an integrated system rather than a collection of separate machines. Our coating line design guide outlines the standard process, which includes free layout drawings, thermal calculations, and applicator simulations to verify coverage before manufacturing begins.

Maintenance and Quality Control for Paint Line Equipment

Paint line equipment requires disciplined maintenance to sustain the quality and efficiency gains it delivers.

Daily and Weekly Maintenance

• Inspect spray nozzles and bells for wear or buildup.

• Check booth water levels, filter condition, and exhaust airflow.

• Verify conveyor chain lubrication and alignment.

• Clean color-change manifolds and solvent lines.

Monthly and Quarterly Maintenance

• Calibrate applicator stroke patterns and gun triggering.

• Verify oven temperature uniformity with thermocouple surveys.

• Inspect pump seals, pressure regulators, and circulation filters.

• Review PLC recipes and alarm logs for drift trends.

Quality Checks

Regular film thickness measurement, gloss testing, and cross-hatch adhesion tests confirm that the paint line equipment is performing within specification. Data from these checks can be linked back to recipe parameters, making root-cause analysis faster.

Frequently Asked Questions About Paint Line Equipment

How Much Does Paint Line Equipment Cost?

Paint line equipment costs range from $60,000 for a compact batch spray system to over $1,000,000 for a high-volume inline robotic painting production line. Total cost depends on workpiece size, daily output, automation level, and energy requirements.

What Is the Difference Between a Spray Painting Line and a Powder Coating Line?

A spray painting line applies liquid coatings using wet paint spray booths and curing ovens, while a powder coating line applies dry powder electrostatically and cures it in a heated oven. Spray painting lines are preferred for high-gloss, multi-color, or heat-sensitive substrates.

How Do I Choose an Automatic Spray Painting Machine?

Choose an automatic spray painting machine based on workpiece geometry, production volume, and finish quality. Servo reciprocators suit flat panels. Robotic applicators handle complex shapes. Ω-disk systems offer high transfer efficiency for small to medium parts.

Conclusion: Selecting the Right Paint Line Equipment

Paint line equipment is more than a collection of machines. It is a coordinated paint line equipment system where the booth, applicator, dryer, conveyor, and controls must be sized around the same workpiece and production target. The right configuration reduces material waste, improves finish consistency, and lowers dependence on manual labor.

Key takeaways:

• Match the spray booth type to your paint chemistry and overspray volume.

• Choose applicators based on workpiece complexity and required finish quality.

• Size the drying oven or tunnel for the heaviest workpiece and required line speed.

• Design the paint supply system for fast color change if you run multiple shades.

• Specify controls that synchronize conveyor speed, applicator motion, and oven temperature.

• Schedule preventive maintenance to protect transfer efficiency and finish quality.

Whether you need a compact liquid painting line for batch work, a high-speed automatic painting line for continuous production, or a robotic spray painting line for automotive parts, the right spray painting equipment protects both finish quality and operating margin. Define your workpiece, output target, and finish specification first, then select the equipment that matches.
